Multi-Fiber Switch for use with ROGUE

Features:
12 fiber switching capability
Dual wavelength, Single-Mode or Multimode
Bidirectional
Large LCD display
Rechargeable lithium ion battery
USB port for charging
Applications:
Converts a single port tester into a multi-fiber tester utilizing your existing OLTS, OTDR, and VFL test equipment
Efficiently test 12-fiber links without disconnecting/reconnecting
Bi-directional testing without moving cables

SKU: Rog.Multi-fiber Categories: , , Tags: , , ,

Description

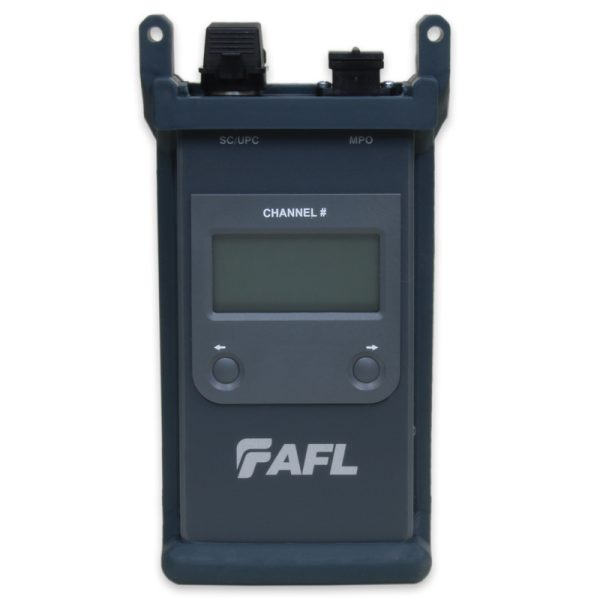

Multi-Fiber Switch

Efficiently tests multi-fiber links.

The density demands of today’s networks are driving more demand for multi-fiber connectivity. As the adoption of multi-fiber connectors becomes more prevalent in data centers, the ability to test these types of connections accurately and quickly has become even more critical.

AFL’s Multi-fiber switch enables the testing of 12 fiber cables without the need to use a breakout cable. The switch allows you to utilize a single piece of test equipment to seamlessly cycle through all of the fibers in a connector regardless of polarity without having to disconnect and reconnect your test equipment making the testing of your network more efficient, saving you both time and money.

AFL’s Multi-Fiber switch can be used with AFL’s Rogue platform to make testing automatic.

It is also compatible with your existing OTDR, OLTS and Certification equipment.

DESCRIPTION/ AFL NO.

Multi-fiber Switch, 12 fibers SM, APC–SC, MPO fiber ring (non-pinned), soft case – MFS-12-SM-ASC-FR – $5875

Multi-fiber Switch, 12 fibers SM, APC–SC, soft case  –   MFS-12-SM-ASC – $4975

Multi-fiber Switch, 12 fibers SM, UPC–SC, soft case   –  MFS-12-SM-USC – $4975

Multi-fiber Switch, 12 fibers MM, UPC–SC, soft case  –  MFS-12-MM-USC $4750

ROGUE MFS Certification Add-on Kits Each ROGUE MFS (Multi-fiber Switch) Certification Add-on kit include (2) Multi-fiber Switches, (2) 6 in. USB-USB mini cables, (1) One-Click Cleaner MPO, (2) MFS carry holsters, (2) MFS kit carry cases plus test cords and mating adapters.
