M710-20 Single Mode – 1310/1550

$7,375.00

40 / 38 dB dynamic range @ 1310 / 1550 nm

Integrated Optical Power Meter (OPM) and Visual Fault Locator (VFL, 650 nm)

LSA Measurements and manual events in Expert mode

Pass/Fail Event and Link Thresholds settings

OTDR results saved as industry standard (GR-196) .SOR files

OPM stores results and displays up to three wavelengths simultaneously

Large, high bright, sunlight readable, transflective touchscreen

Tool-free, switchable adapters (SC/FC/LC)

Integrated fiber launch ring holder

2 USB host ports

USB drive and Windows® compatible software included

SKU: M710-20-1 Categories: , Tags: , ,

Description

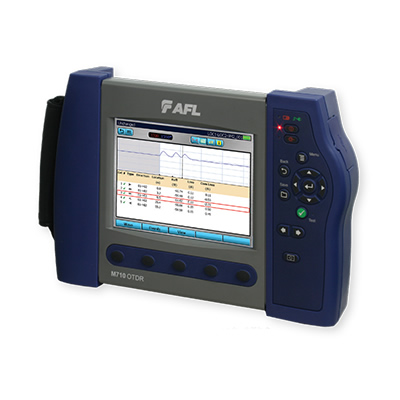

The Noyes M710 from AFL Telecommunications is a compact, full featured, single-mode OTDR that includes an integrated Visual Fault Locator (VFL), an Optical Power Meter (OPM) displaying up to three wavelengths simultaneously, and a large transflective touch screen display suitable for both indoor and outdoor operation.

The M710 OTDR supports Real Time, Full-Auto, and Expert (manual) modes, precision event analysis, dual-wavelength testing, rich file naming, and an intuitive job set-up functionality. In addition to OTDR event analysis, pass/fail acceptance values, and marginal warning, specific values can be set to alert the test operator of failing or marginal events. Using one of the Least Squares Approximation (LSA) loss methods, events may be added or deleted manually.

Thousands of OTDR and OPM test results can be stored internally or on the supplied USB drive, and are transferable via a USB cable or drive to a computer for viewing, printing and analyzing with supplied Windows® compatible software. Saved OPM loss values for a cable in one or two directions can be displayed in a table on the M700 for evaluation and comparison.

With short dead zones, a dynamic range of 40/38 dB, and greater than 8-hour battery life during continuous testing, the M710 is perfect for testing optical fibers in service provider metro areas.

Specifications

OTDRSpecifications
Emitter Type Laser
Safety Class Class 1 FDA 21 CFR 1040.0 & 1040.11
Center Wavelengths 1310/1550 nm
Dynamic Range (SNR = 1) 40 / 38 dB (1310/1550 nm)
Event Dead Zone 1 0.8 m
Attenuation Dead Zone 2 4.5 m
Pulse Widths 5, 10, 30, 100, 300 ns, 1, 3, 10, 20 ms
Range Settings 250 m to 256 km
Distance Sampling Points max. 64,000 points
Data Point Spacing 0.125 m
Group Index of Refraction (GIR) 1.4000 to 1.6000
Distance Uncertainty (m) 3

± (1 + 0.0005% x distance + data point spacing)

Trace File Format Bellcore GR-196 Version 1.1
Trace File Storage Media Internal flash memory
USB flash drive
Downloadable from OTDR directly to PC
Trace File Storage Capacity Internal 1000 fibers
Data Transfer to PC USB
OTDR Modes Full Auto, Real Time, Expert
Tool Free adapters Modular cleanable SC/ST/FC/LC
Visual Fault Locator Specifications
Emitter Type Laser
Safety Class Class II FDA 21 CFR 1040.10 & 1040.11; IEC 825-1:1993, EN60825-1:1994
Wavelength 650 nm
Output Power (nominal) 0.8 mw



Power Meter Specifications
Calibrated Wavelengths 850, 980, 1310, 1490, 1550, 1625 nm (displays up to 3 simultaneously)
Detector Type Filtered InGaAs detector
Measurement Range (dBm) +26 to -50 dBm
Accuracy 4 ±0.25
Measurement Units dB, dBm, mW
Wavelength ID 5 Yes
Set Reference Yes
Data Storage Yes
Tone Detection 270 Hz, 330 Hz, 1 kHz, 2 kHz


General Specifications
Size 27.4 x 19.3 x 7.1 cm (10.8 x 7.6 x 2.8 in)
Weight 2.3 kg ( 5 lb)
Operating Temperature -10 to +50°C, 0 to 90% RH (non-condensing)
Storage Temperature -20 to +60°C, 0 to 90% RH (non-condensing)
Power Rechargeable Li-Ion or AC power adapter
Battery Life 6 > 8 hours continuous OTDR testing
Recharge Time 7 4 hours
Display 6.5 inch (16.51 cm), color, transflective

M710 SM OTDR 1 $7,375.00
M710 SM OTDR w/ Hard Case, Charger, Spare Battery 1 $8,995.00
