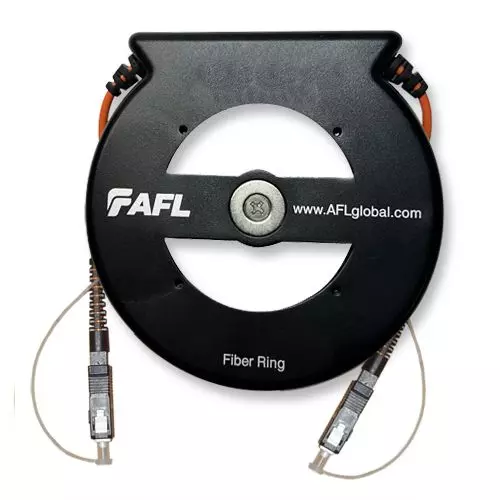

AFL/ NOYES Fiber Ring OTDR- Launch or Receiver Cable

$235.00

NOYES Fiber Ring OTDR- Launch or Receiver Cable FR1-M5 (or M6) (or SM) – 150-X1-X2

a. X1, X2 — connectors for multimode or singlemode cables, specify type [ST, SC, ASC (angled SC), FC, AFC (angled FC), LC].

Note: 150 = 150m (492 ft)

M5 = 50um, OM2 multimode

M6 = 62.5um, multimode

SM = single-mode



Description

AFL/ Noyes Fiber Ring

Factory new for OTDR

Noyes OTDR test cables are available in two forms. Fiber Rings, which provide 150 m of 50 um, 62.5 um, or single-mode fiber in a compact, light-weight ring, are ideal for testing optical fiber links (up to about 2 km) in premises networks. Fiber Boxes, which are available in standard lengths up to 1 km, are ideal for testing single-mode fiber spans (up to 50 km or longer) in Telco and Broadband networks. Please call or email for information about other length OTDR fiber boxes and Network Simulators, which are fiber boxes with customer-specified splices, connections, or other events.

This auction is for 1 standard Fiber Ring -FR1 style……  which can be used either as a launch OR receive cable.

Call (207) 221-3154 or esales@tamge.com

OTDRs require launch and receive test cables to measure the end-to-end loss of optical fiber links. A launch cable, which connects the OTDR to the link under test, reveals the insertion loss and reflectance of the near-end connection. A receive cable, which is connected to the far-end of the link, reveals the insertion loss and reflectance of the far-end connection.

Warranty: Includes full 1 year Noyes factory warranty
