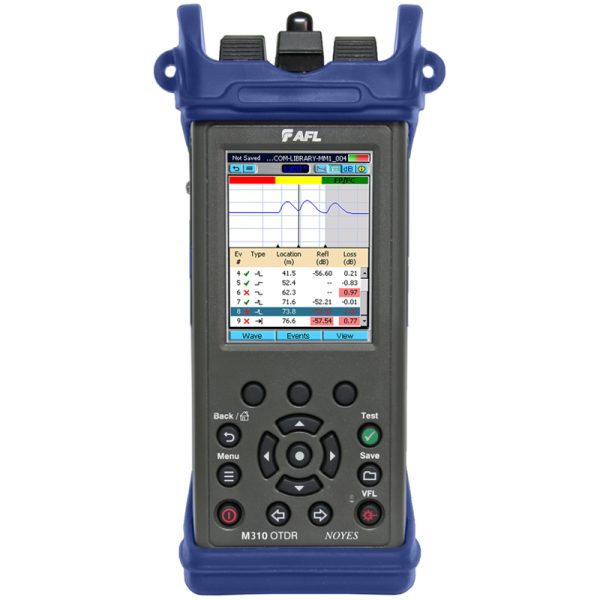

M310-20 Data Center OTDR w OPM & VFL


 M310-20 covering 1310/1550 at 38/37 dB Dynamic Range,

it has integrated OPM and VFL (SINGLE MODE)

•Test, troubleshoot and document Data Center, Enterprise and Telco fiber networks
•Tier 1 and Tier 2 testing and certification of SM and MM networks
•Document and create standards compliant acceptance reports with TRM™ 2.0, companion PC software
•Inspection of fiber endfaces using DFS1 Digital FiberScope

•0.8/2.5 m event/attenuation Dead Zone MM
•0.8/3.0 m event/attenuation Dead Zone SM
•Automatic Pass/Fail Analysis (TIA/ISO)
•Touch and Test® User Interface

•Show More Show Less

SKU: M310-20 Categories: , Tags: , ,


The NOYES M310 is the only OTDR with controlled mode fill for multimode fiber testing without the need of an external modecontroller. The controlled launch provides more accurate link loss measurements comparable to a mode conditioned light source
and power meter loss measurement. Industry leading short dead zones, mode controlled launch, OPM, VFL and inspection capability
combine to make this the most complete OTDR for Data Center testing and troubleshooting. Delivered in a rugged, lightweight, easy
to hold package, the M310 has the easy-to-learn, easy-to-use Touch and Test user interface, which makes it easy for both experts and novices to perform tests and document data center and enterprise networks accurately and quickly.
The M310 is available in Multimode, Single-mode and QUAD models, each comes standards with an OPM, VFL and is Digital
FiberScope ready. The M310 Single-mode and QUAD models can be ordered with Advanced Analysis software which includes;
Macro/Microbend detection and Bi-directional trace analysis. Using the Advanced Analysis software and testing against industry ISO/
TIA standards or user set Pass/Fail thresholds, technicians are alerted of installation problems and failures. This reduces troubleshooting time and minimizes network downtime. Cut, Copy, Paste and Rename functionality has been added to allow technicians to quickly initiate testing and troubleshoot networks and provide the ability to adjust to the project naming after the results have been obtained

Also available is …………

A Quad unit, M310-25, covers 850/1300/1310/1550 with 30/30/38/37 dB, also having integrated OPM and VFL is available. – call or email for discount pricing
