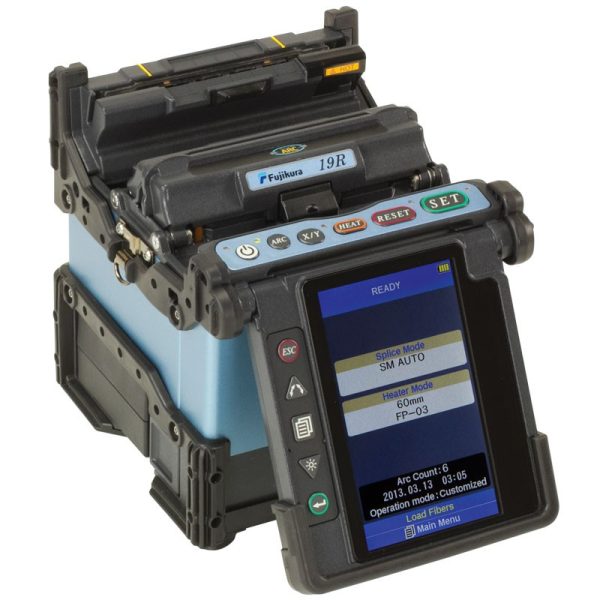

FSM-19R Fujikura Fusion Splicer With Cleaver, HJS, Battery & Cord


19R Fusion Splicer Kit (with cleaver, HJS, battery and cord)

Includes: BTR-09 battery, DCC-18 Battery Charge Cord, CT30 Cleaver, ADC-18 AC Adapter

ACC-14 AC Cord, ELCT2-20A Spare Electrodes (pair), FH-50-4 Fiber Holder, FH-50-250 Fiber Holder, FH-50-900 Fiber Holder, HJS-02 Stripper, USB Cable, Alcohol Dispenser, Screw Driver, Sleeve Loader, Splicer Carrying Strap, Quick Reference Guide, Video Instruction Manual and CC30 Transit Case with Carrying Strap


The Fujikura 19R is equipped with a precision, fixed v-groove for splicing single fibers

or ribbon fiber up to 4 fibers. Incorporating the proven ruggedized features pioneered

by Fujikura, the 19R has added automated and enhanced user control features to

increase splicing efficiency. A user programmable, automated wind protector expedites

the splicing process by automatically closing to initiate the splice process, and opening

upon splice completion. A new auto-start “clamshell design” tube heater applies heat

to both sides of the splice protection sleeve resulting in a 18-second shrink time for

4-fiber ribbon. The result is a total splice process time of approximately 29 seconds!

Ruggedness and durability are greatly enhance by a mirror-less optical system and

“severe-impact resistant” monitor. Battery capacity is now 140 splices/shrinks.

An innovative transit case doubles as a built-in or mobile workstation and makes

splicing easier than ever before.



•• Automated and programmable wind protector

•• 18-second automated tube heater

•• Fully ruggedized for shock, dust and moisture

•• Li-ion battery with 140 splices/shrinks per charge

•• On-board training and support videos

•• Internet software upgrades

•• Multi-function transit case with integrated workstation
