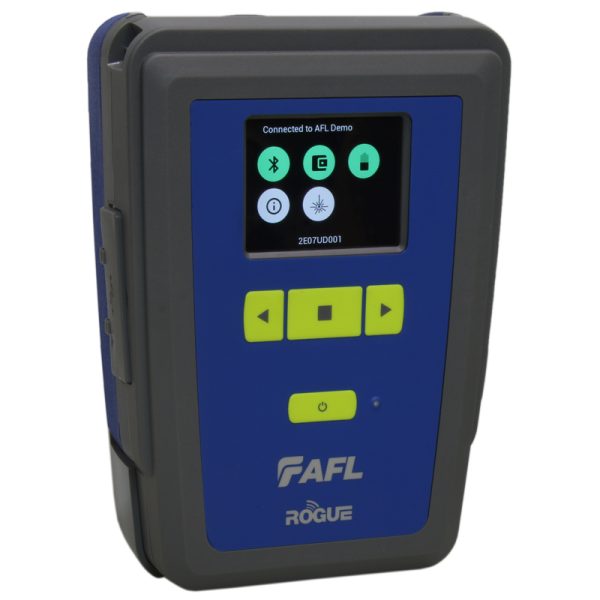

ROGUE® OLTS/Certification Module – 850/1300/1310/1550

$2,795.00

ROGUE OLTS/Certification Modules with TURBO App

 • Quad single-mode/multimode, Dual single-mode or Dual multimode

• Hot-swappable into ROGUE cB1 or iB1 units

• Use with aeRos cloud-based workflow management software

• Integrated FOCIS Flex Inspection capability

• Simultaneous, dual-wavelength, bi-directional loss and length testing through Dual Engine technology

• Integrated Source, Power Meter and Visual Fault Locator (VFL) • Built-in Encircled Flux compliance

Applications

• Tier 1 certification testing of premise/enterprise networks

• Dual-fiber, dual-wavelength, unidirectional or bi-directional OLTS testing

• Multi-fiber testing: loss, length, ORL, certification with one push of a button

• View results and generate reports anywhere, anytime using aeRos

• Integrated multi-wavelength, bi-directional MPO/multi-fiber testing using optional multi-fiber switch

SKU: Rogue OLTS Categories: , , Tags: , ,

Description

Each ROGUE OLTS test module uses state-of-the-art technology to produce the most accurate results in the shortest amount of time. Modules contain bi-directional test ports as well as an optical power meter port and visual fault locator. All Multimode ports are Encircled Flux compliant as required by ANSI/TIA and ISO/IEC.

By pairing ROGUE modules with smart device apps, AFL’s patent pending architecture enables users to control their test hardware directly from any Android smart device. ROGUE users can easily turn the OLTS solution into a full Tier 1 certifier simply by adding our TURBO Certification app.

Test configurations and instructions are pushed from AFL’s aeRos cloud solution to the TURBO app to simplify the process for technicians. When the testing is complete, the results automatically and seamlessly synchronize with the cloud for real-time, on-site test data validation. No more waiting for the technician to return with a USB stick and manually transfer the data. With two bi-directional engines, you can even test both fibers in both directions on 2 wavelengths. All with the push of a button on your smart device.

If your network consists of multi-fiber cables and MPO connectors, simply add our Multi-fiber Switch to the ROGUE platform to perform bi-directional, dual-wavelength, multi-fiber testing. AFL’s FOCIS Flex wireless inspection probe can also be added for integrated and seamless capture of fiber endface images.

ROGUE® OLTS/Certification Module

Built around you and the way you test your network.

The ROGUE OLTS/Certification Module is part of the ROGUE modular test platform and when paired with the ROGUE carrier provides the hardware capabilities of a complete optical loss test set.

Each module contains 2 bi-directional test ports as well as an optical power meter port and a Visual Fault Locator.

All multimode ports are Encircled Flux compliant as required by ANSI/TIA and ISO/IEC.

This module can be paired with either a basic OLTS app on your smart device or can be turned into a full tier 1 certifier with the addition of a separate certification app.

ROGUE OLTS Modules ROGUE OLTS modules must be installed in either a ROGUE cB1 or ROGUE iB1 unit. Each module comes with a ROGUE OLTS Basic license allowing the OLTS module to be used in a ROGUE cB1 or iB1 and enabling basic aeRos OLTS functionality. Each module includes SC connector adapter for the OLTS/OLS ports and universal 2.5 mm adapters for the VFL and OPM (if installed) ports.
DESCRIPTION

Module – Quad MM 850/1300 nm, SM 1310/1550 nm RG-1100-Q01 – $2795

Module – MM 850/1300 nm, Dual Engine RG-1100-M01-D – $2595

Module – SM 1310/1550 nm, Dual Engine RG-1100-S01-D – $2845
