FLX380-304 FlexTester3 High-Performance Micro OTDR -1310/1490/1650

$8,495.00

FLX380-304 (1310/1490/1650 – 41/41/38 dB)

Complete out-of-service testing at all FTTx PON wavelengths (1310/1490/1550 nm)

41 dB dynamic range OTDR
• Best-in-class event, attenuation, and PON dead zones
• AFL’s unique ServiceSafe™ Live PON OTDR
• Fast, error-free loss-testing using Wave ID synchronization.
• Over 12 hours continuous testing without battery replacement or recharge
• Integrated 50 m launch fiber.

SKU: FLX380-304-1 Categories: , Tags: , ,

Description

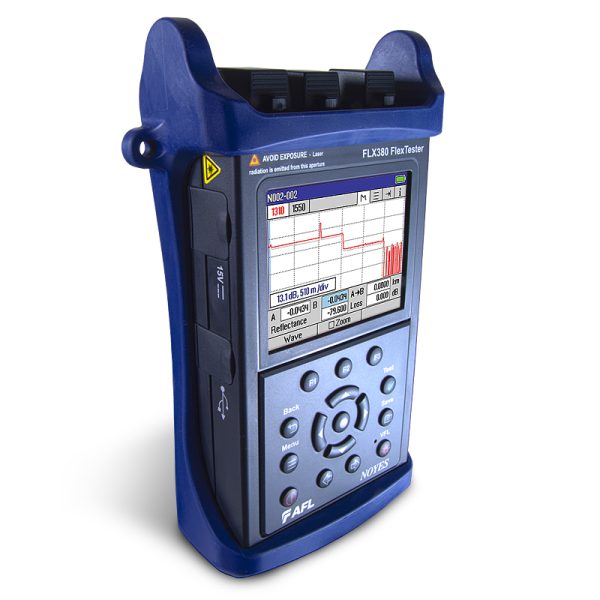

The NOYES FLX380 FlexTester3 is the world’s smallest, lightest, most complete single mode fiber optic test set. It combines high-performance, multi-wavelength OTDR / PON OTDR, OLS, OPM, VFL and PON Power Meter in a rugged, hand-held package.

With 41 dB dynamic range, best-in-class event, attenuation, and PON dead zones, macrobend and splitter detection, launch quality check, plus AFL’s unique ServiceSafe and Wave ID features, the FLX380 FlexTester3 Series offers an unmatched combination of optical test functions, ease-of-use, portability, and value.
Over 1000 OTDR test results (Telcordia SR-4731 .SOR file format) may be saved in the FLX380’s internal 4GB memory. Stored OTDR and OPM results may be transferred to PC via USB cable or wirelessly via Bluetooth®. Windows® compatible TRM® 2.0 Basic Test Results Manager software is included for OTDR and OPM results viewing, analysis, and professional report generation.
The FLX380 FlexTester user interface provides modes suitable for both novice and expert users. It features a top-down menu structure which is both easy to learn and a pleasure to use. User interface software supports over a dozen languages including English, Chinese (Simplified and Traditional), French, German, Italian, Japanese, Korean, Portuguese, Polish, Russian and Spanish.

Advanced analysis and reporting capabilities, including micro-/macro-bend detection and bi-directional trace averaging, are available by upgrading to TRM 2.0 Advanced.
FLX380 FlexTester Configuration Option

In FTTx PONs, it is possible for one user to lose service while other subscribers served by the same OLT continue to remain in service. Attempting to troubleshoot a faulty optical distribution and drop fiber connection from the out-of-service subscriber’s location using a 1310 or 1550 nm OTDR, would disrupt service to remaining users. AFL’s patented ServiceSafe feature alerts the OTDR user to the presence of live traffic and prevents the initiation of service-disrupting OTDR tests at 1310 or 1550 nm. FLX380-303 and -304 models additionally measure downstream power levels at 1490 and/or 1550 nm, and allow the user to initiate an OTDR test using a non-disruptive 1625 or 1650 nm wavelength. To eliminate unnecessary connector wear and tear, 1625/1650 nm live PON OTDR testing and PON power measurements are performed through the same optical port used for 1310/1550 OTDR testing

Create Professional Test Reports using TRM® 2.0

Stored OTDR and/or OPM results can be uploaded via USB to a PC, then viewed and analyzed using TRM 2.0 Basic Test Results Manager software included with each FLX380 FlexTester3. With TRM, users can generate professional acceptance test reports conforming to industry guidelines. TRM allows users to create customized cover pages with their company logo along with results pages showing dual wavelength traces, event tables, event map, and loss results for each fiber. A report generation Wizard makes custom report generation fast and easy.
TRM also supports OTDR trace analysis providing batch editing features, event add, modify, or delete, trace compare, and advanced event analysis capabilities. Upgrade to TRM 2.0 Advanced to add bi-directional trace averaging.
Over 1000 OTDR test results (Telcordia SR-4731 .SOR file format) may be saved in the FLX380’s internal 4GB memory. Stored OTDR and OPM results may be transferred to PC via USB cable or wirelessly via Bluetooth®. Windows® compatible TRM® 2.0 Basic Test Results Manager software is included for OTDR and OPM results viewing, analysis, and professional report generation.

Advanced analysis and reporting capabilities, including micro-/macro-bend detection and bi-directional trace averaging, are available by upgrading to TRM 2.0 Advanced.
FLX380 FlexTester Configuration Option

In FTTx PONs, it is possible for one user to lose service while other subscribers served by the same OLT continue to remain in service. Attempting to troubleshoot a faulty optical distribution and drop fiber connection from the out-of-service subscriber’s location using a 1310 or 1550 nm OTDR, would disrupt service to remaining users. AFL’s patented ServiceSafe feature alerts the OTDR user to the presence of live traffic and prevents the initiation of service-disrupting OTDR tests at 1310 or 1550 nm. FLX380-303 and -304 models additionally measure downstream power levels at 1490 and/or 1550 nm, and allow the user to initiate an OTDR test using a non-disruptive 1625 or 1650 nm wavelength. To eliminate unnecessary connector wear and tear, 1625/1650 nm live PON OTDR testing and PON power measurements are performed through the same optical port used for 1310/1550 OTDR testing

Create Professional Test Reports using TRM® 2.0

Stored OTDR and/or OPM results can be uploaded via USB to a PC, then viewed and analyzed using TRM 2.0 Basic Test Results Manager software included with each FLX380 FlexTester3. With TRM, users can generate professional acceptance test reports conforming to industry guidelines. TRM allows users to create customized cover pages with their company logo along with results pages showing dual wavelength traces, event tables, event map, and loss results for each fiber. A report generation Wizard makes custom report generation fast and easy.
TRM also supports OTDR trace analysis providing batch editing features, event add, modify, or delete, trace compare, and advanced event analysis capabilities. Upgrade to TRM 2.0 Advanced to add bi-directional trace averaging.
FLX380-302 (1310/1490/1550)    and       FLX380-303 (1310/1550/1625)

AVAILABLE DISCOUNT PRICING UPON REQUEST

• FLX380-304: Verify both in-service (live) and out-of-service FTTx networks from a single port. Includes 1310/1550/1650 nm live PON OTDR with integrated PON Power Meter.

• FLX380-303: Similar to FLX380-304, but with 1625 nm filtered Live PON OTDR, instead of 1650 nm.

• FLX380-302: Complete out-of-service testing at all FTTx PON wavelengths (1310/1490/1550 nm). •

FLX380-300: Lowest cost, high-performance, all-in-one 1310/1550 nm OTDR for out-of-service installation testing or troubleshooting on both FTTx PON and point-to-point fiber optic networks.

• All models include integrated VFL plus Wave ID source and power meter.
