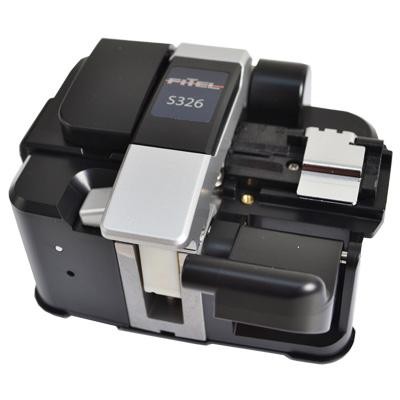

With its ergonomic and light weight design, the S326 cleaver offers the operator the versatility to cleave on a work bench or in the palm of their hand. The reduced lid size and wide opening angle facilitates fiber loading and improves stability resulting in better single and ribbon fiber cleaves. Just pressing the lever completes the fiber cleave and automatically collects the waste. With 24 positions, the long life-time blade achieves 48,000 fiber cleaves. The S326 cleaver can offer optical fiber cleaving for a full range of OSP and OEM applications. The S326A configuration comes with both the regular and large size fiber waste bin or users can choose the smaller S326B option without a bin.peration on desktop Wide lid opening angle.
All fiber types, single to 12-fiber ribbons
Clad Diameter – 0.125 mm
Coating Diameter – 0.25mm and 0.9mm for single fiber; 0.3mm to 0.4mm for ribbons
Cleave Length – Single: 10 & 16mm Variable: 3 to 20mm Ribbon: 10mm fixed
Dimensions/Weight – 93W x 68D x 54H (mm) 330 grams
